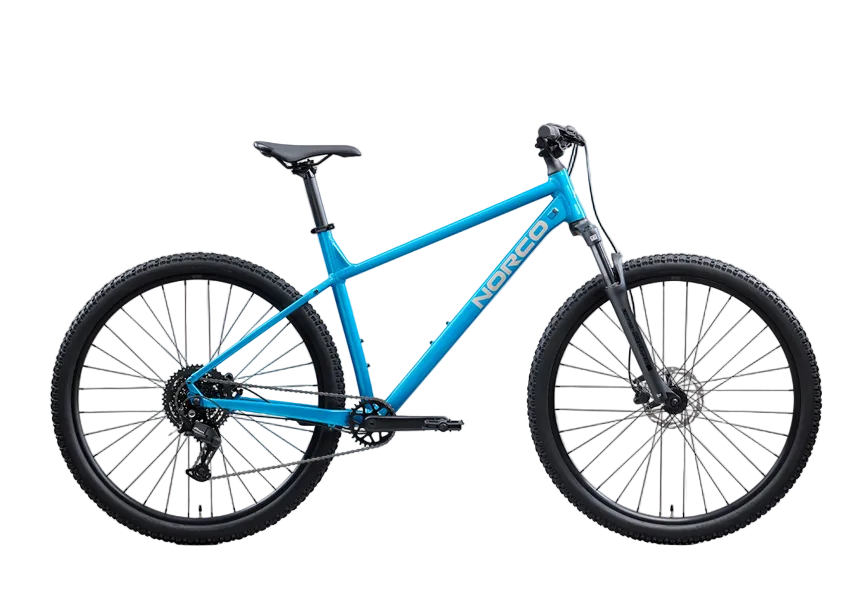

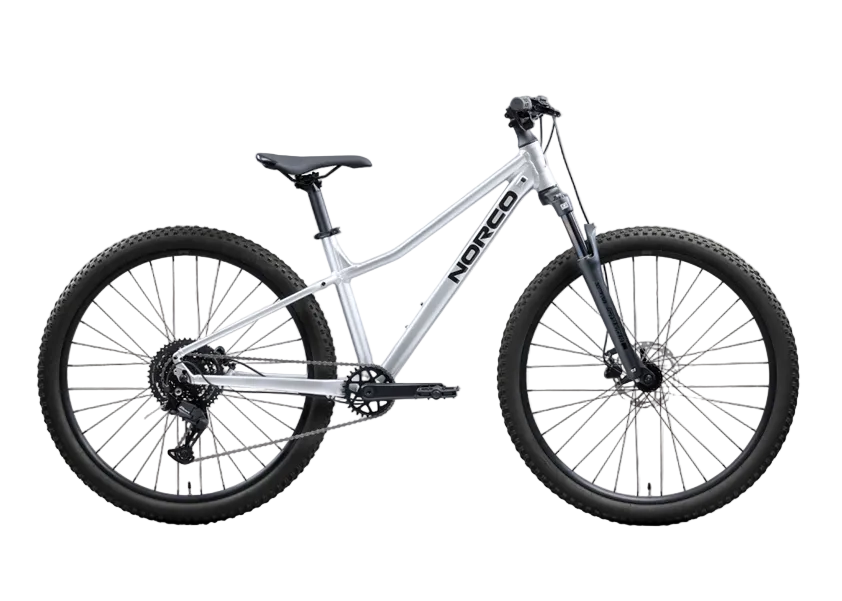

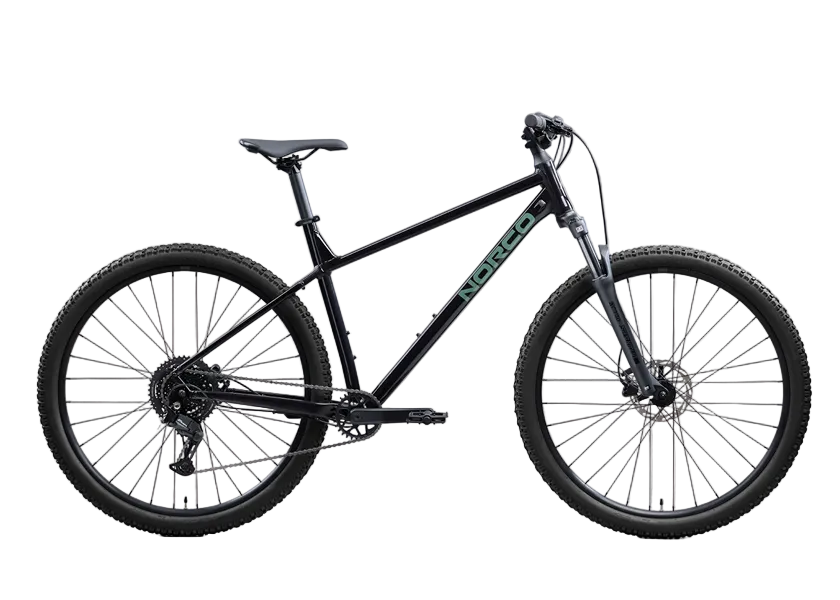

STORM 3

Frameset

Frame - Aluminum, Tig Welding, 10x135mm QR, Tapered HT

Fork - SR Suntour XCT30 Coil, 100mm, 46mm offset, QR

Drivetrain

Rear Derailleur - Shimano Essa RD-U2000, GS, 8sp

Crankset - Prowheel Alloy, 30T, 170mm (S-M), 175mm (L - XXL)

Bottom Bracket - Cartridge, ST 73mm, 113mm axle length

Cassette - Shimano ESSA CS-HG300-8, 11-45T, 8sp

Chain - KMC Z8

Shifter Casing - Shimano Altus SL-M315, 8sp

Brakes

Front Brake - Shimano BR-MT200, Resin pads

Front Brake Rotor - Shimano SM-RT26, 160mm, 6-Bolt

Rear Brake - Shimano BR-MT200, Resin pads

Rear Brake Rotor - Shimano SM-RT26, 160mm, 6-Bolt

Brake Levers - Shimano BL-MT200

Components

Handlebar - Norco Aluminum, 740mm (S-M) 760mm (L-XXL), 20mm Rise

Stem - Alloy 40mm Length, 31.8mm Clamp

Seatpost - Alloy 31.6mm, 300mm (S), 400mm (M/L/XL/XXL) length

Headset - Zero Stack, 1-1/8" Steer, ZS44/28.6 | ZS44/30 1 1/8"

Saddle - Norco XC, Steel Rail

Grips - Norco lock-On, 130mm length

Pedals - Nylon Flat Pedal

Seatpost Clamp - Norco Alloy QR, 34.9mm ID

Wheels

Front Hub - Formula DC-1420 , 9x100mm QR, 32h, 6-bolt

Rear Hub - Formula DC-27A,10x135mm QR, HG, 32h, 6-bolt

Rims - Alloy XD-155, 32H

Front Tire - CY, 29x2.25" (M-XXL) 27.5"x2.25 (S), Wire

Rear Tire - CY, 29x2.25" (M-XXL) 27.5"x2.25 (S), Wire
