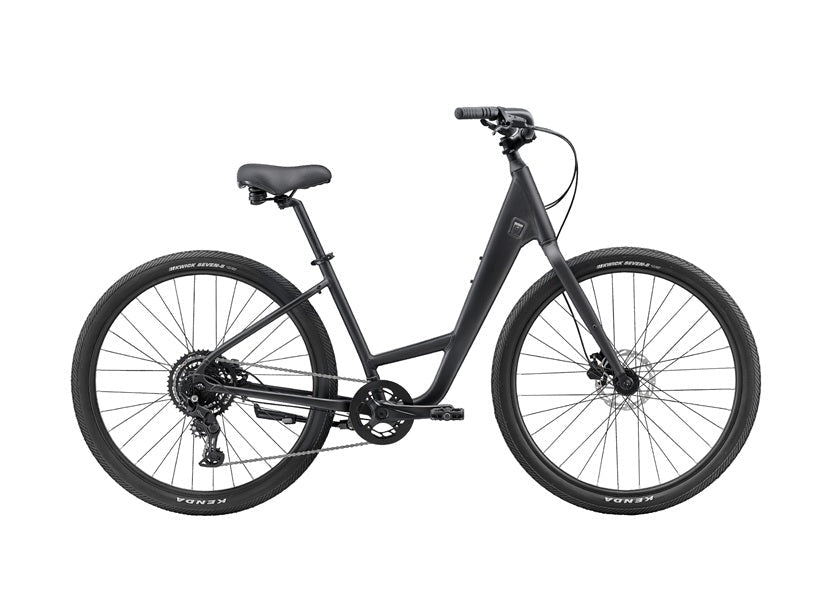

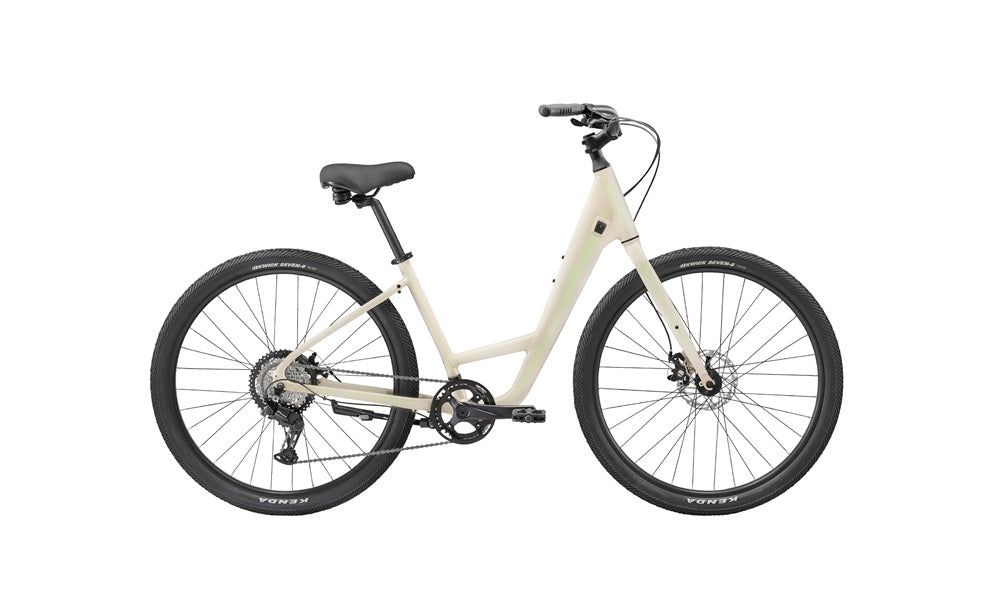

SCENE 2

Frame - Aluminum w/Smooth Welds

Fork - Hi-Tensile Steel, 100mm QR, IS Disc

Rear Shifter - Shimano Altus SL-M315, 8spd

Rear Derailleur - Shimano Essa RD-U2000, 8sp, Direct mount

Crankset - Aluminum 36T, CL44, 165mm (S) - 170mm (M/L/XL)

Bottom Bracket - Cartridge Bearing, Square Taper 68mmx103mm

Cassette - Shimano CS-HG400-8, 11-40T, 8spd

Chain - Z8.3, 8sp

Front Brake - Tektro MD-M280, Mechanical Disc, Resin Pads

Front Brake Rotor - Tektro, 160mm, 6-Bolt

Rear Brake - Tektro MD-M280, Mechanical Disc, Resin Pads

Rear Brake Rotor - Tektro, 160mm, 6-Bolt

Brake Levers - Tektro Alloy 2-Finger Lever, Reach Adjust

Handlebar - Norco Scene Aluminum, 660mm, 60mm Rise, 30Deg Backsweep

Stem - Aluminum, 70mm (SM/MD) - 80mm (L/XL), 17deg Riser, 31.8 clamp

Seatpost - Aluminum 27.2mm ID, 350mm Length

Headset - Semi-Integrated, 1-1/8" ( ZS44/28.6 | ZS44/30 )

Headset Spacer - 2x10mm, 1x5mm

Saddle - Scene Comfort Saddle w/Elastomer Suspension, 225mm W x 269mm L

Grips - Dual Density Ergonomic, 135mm Length

Pedals - VP City Pedal, 9/16"

Seatpost Clamp - Aluminum Quick Release 31.8mm ID

Front Hub - Formula DC-1420, 9x100mm QR, 32h, 6-bolt

Rear Hub - Formula DC-27A,10x135mm QR, HG, 32h, 6-bolt

Rims - Double Wall Aluminum, 32h, F/R 27.5"

Front Tire - Kenda Kwick Seven5, 27.5x2.2", Wire

Rear Tire - Kenda Kwick Seven5, 27.5x2.2", Wire

Rear Hub Skewer - Alloy QR, 9x151mm

Front Hub Skewer - Alloy QR, 9x109mm

Spokes/Nipples - Stainless 2.0mm, Brass Nipples
