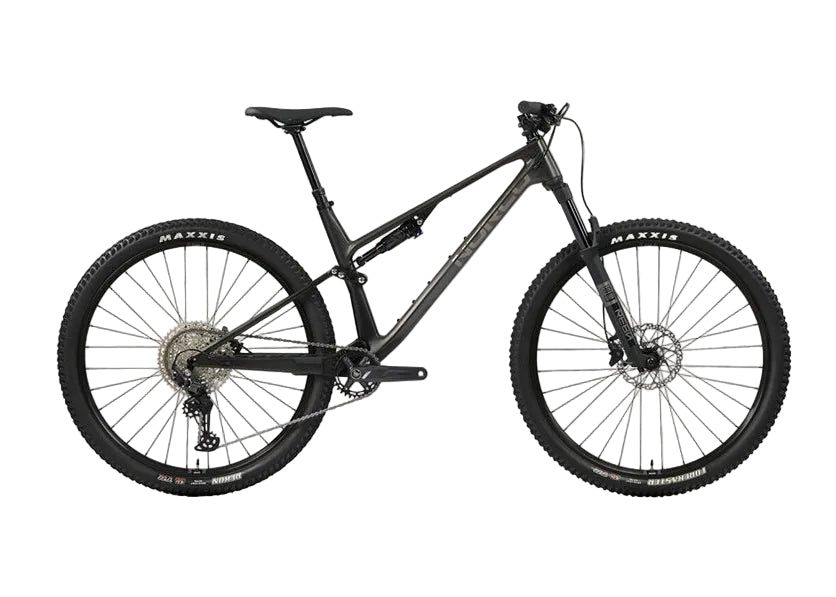

2026 REVOLVER FS C3 130 29
2026 REVOLVER FS C3 130 29
Availability
Couldn't load pickup availability
The Revolver C3 130 is the lightest and most capable full-suspension frame Norco has ever built. At the core of its efficiency is our advanced approach to the Flex-Pivot design, letting us get improved performance out of the lightweight inline shocks we’re spec'ing that would typically be reserved for heavier and larger volume air shocks. With modern, aggressive XC geometry, consistant weight distribution across sizes, and a carbon frame layup optimized per frame size for stiffness and compliance, it’s a strong foundation for driving up and charging down.
Specifications
Frameset
Frame - Carbon Frame, 120mm Travel, UDH, Eagle Transmission Compatible, Ride Aligned™
Fork - Rockshox Reba RL, Motion Control, 130mm, 44mm offset,
Rear Shock - Rockshox SID LUX Select +, 190x45mm, standard
Drivetrain
Rear Shifter - Shimano Deore SL-M6100, 12sp
Rear Derailleur - Shimano Deore RD-M6100, 12sp, SGS
Crankset - Shimano Deore FC-MT512, 32T, CL55, 165mm (S1), 170mm (S2,S3) 175mm (S4,S5)
Bottom Bracket - Shimano BB-MT501, BSA 73mm
Cassette - Shimano Deore CS-M6100-12, 10-51T, 12sp
Chain - Shimano Deore CN-M6100-12, 12sp
Brakes
Front Brake - Shimano Deore BR-MT410, 2-Piston, Resin Pads
Front Brake Rotor - Shimano SM-RT64, 180mm, C-lock
Rear Brake - Shimano Deore BR-MT410, 2-Piston, Resin Pads
Rear Brake Rotor - Shimano SM-RT64, 180mm, C-lock
Brake Levers - Shimano Deore M4100
Components
Handlebar - Norco 6061, 760 (S1,S2,S3) 780mm (S4,S5), 20mm rise
Stem - Norco 6061, 50mm, 35mm Clamp
Seatpost - TranzX YSI36, 31.6mm, 120mm (S1, S2) -150mm (S3) -170mm (S4) - 200mm (S5)
Headset - FSA No 42/48ACB Integrated Headset, Tapered 1-1/8" - 1.5"
Saddle - WTB Silverado Medium
Grips - WTB Wavelength
Seatpost Clamp - Norco bolted, 34.9mm ID
Wheels
Front Hub - Shimano Deore HB-MT410, 15x110mm Boost, 32H, C-lock
Rear Hub - Shimano Deore FH-MT510, 12x148 Boost, Microspline, 32H, C-lock
Rims - WTB ST i27 TCS, 27mm ID, 32H, 29"
Front Tire - Maxxis New Forekaster, EXO, TR 29x2.40"
Rear Tire - Maxxis Rekon, EXO, TR 29x2.40"
Rear Hub Skewer - 148mm x 12mm TA, L174, TL13, M12x1.6
Spokes/Nipples - Stainless steel
Valves - WTB tubeless valves
Sealant - Stans 250ml sealantWeightWeight13.64 kg (30 lbs)
