Specialized

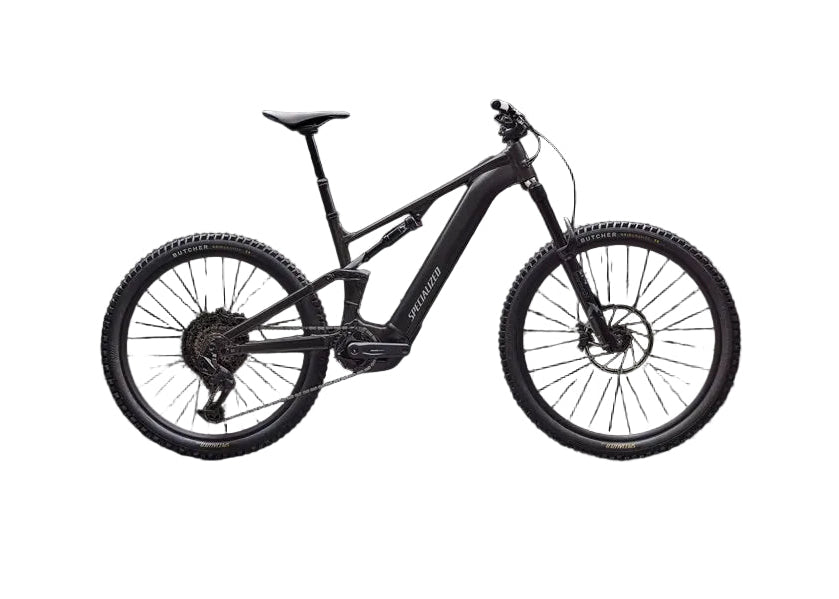

Turbo Levo 4 Alloy
Turbo Levo 4 Alloy
Availability
Couldn't load pickup availability
The Specialized Science Club Introduces the Levo 4, an electric mountain bike so advanced it transforms you into a cycling cyborg. Together you're SuperNatural, fortified with super power, traction, control, and range to conquer any off-road terrain. Levo 4, Where Super Meets Natural.
Specifications
E-bike
UI/Remote - All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized app
Motor - Specialized 3.1 Motor, 101Nm torque, 666W power
Charger - Specialized 4amp chargerBattery840Wh battery
Frameset
Seat Binder - Alloy, 38.6mm
Frame - All new Levo 4 M5 Alloy frame, 150mm travel,, adjustable chainstay, adjustable head tube angle, adjustable bottom bracket, internal SWAT storage 148mm spacing, 29" front wheel/27.5" rear wheel, fork travel up to 180mm
Suspension
Rear Shock - *Marzocchi Bomber Inline, EVOL LV air sleeve, rebound adjust, 210x55mm
Fork - Marzocchi Bomber Z1, 29", S2-S6: 160mm, S1: 150mm, sweep adjust compression
Brakes
Front Brake - SRAM DB8 Stealth, 4-piston caliper, hydraulic disc, 220mm Centerline rotor
Rear Brake - SRAM DB8 Stealth, 4-piston caliper, hydraulic disc, 200mm Centerline rotor
Drivetrain
Cassette - XS-1270, 12-speed, 10-52t
Chainrings - SRAM 34t T-Type chainring, 104 BCD, steel
Chain - SRAM Eagle 70 T-Type Flattop Chain
Rear Derailleur - SRAM Eagle 70 T-Type
Shift Levers - SRAM 70 trigger, 12-speed, single click
Crankset - SRAM S1000 Crankset, ISIS Interface, Integrated Guard, 55mm Chainline, 155mm
Wheels & tires
Rear Tire - Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 27.5x2.4"
Front Tire - Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 29x2.4"
Spokes - DT Swiss Industry
Front Hub - Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h
Rear Hub - Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h
Rims - Specialized 29/27.5, hookless alloy, 30mm inner width, tubeless ready
Inner Tubes - Standard, Presta valve
Cockpit
Stem - Alloy Trail Stem, 35mm bar bore
Handlebars - Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, S1-S2: 780mm width, S3-S6 800mm width
Saddle - Body Geometry Bridge Saddle, steel rails
Grips - Specialized Trail Grips
SeatPost - TranzX dropper, 34.9mm, S1: 100mm, S2: 125mm, S3: 150mm. S4-S5: 170mm, S6: 200mm
Accessories
SWAT - SWAT internal downtube storage
Product details
Product ID - 221347
Compliance Certification - As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS. <br>For information on lithium-ion battery standards and regulations in New York City, visit: [www.nyc.gov/fdny/batteries](https://www.nyc.gov/fdny/batteries)
Weight
Weight - 26.08 kg (57 lb, 7.8 oz)
Weight Size - S4
