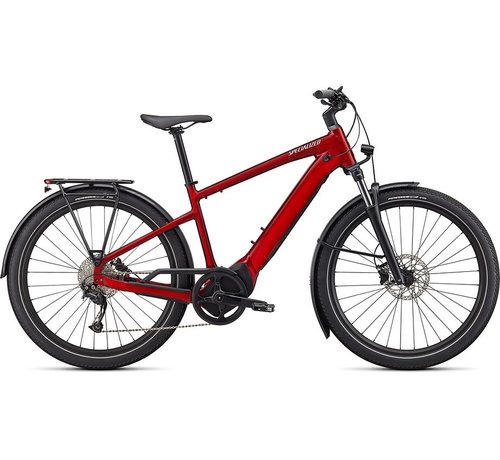

Specialized VADO 3.0

Specialized VADO 3.0

BIKE SPECS...

Frame

E5 Aluminum, bottom bracket motor mount, fully integrated &lockable downtube battery, internal cable routing, lock and front rack mount

Fork

SR Suntour MobieA32, 80mm travel, lockout, fender-mounts, integrated light mount

Stem

Specialized Flowset, 3D-forged alloy, 20-degree rise, 31.8mm clamp

Handlebars

Specialized, alloy, 15-degree backsweep, 46mm rise, 31.8mm

Grips

Specialized Body Geometry Contour, lock-on

Front Brake

Shimano BR-MT200, hydraulic disc, 180mm Centerlock

Rear Brake

Shimano BR-MT200, hydraulic disc, 180mm Centerlock

Rear Derailleur

Shimano Alivio, SGS, 9-speed

Shift Levers

Shimano Alivio, 9-speed w/ Optical Gear Display

Cassette

Shimano CS-HG400, 9-speed, 11-36t

Chain

KMC e9T, 9-speed w/ Missing Link™

Crankset

Custom alloy forged crankarms

Chainrings

Praxis, 48T, 104BCD

Pedals

Specialized Commuter w/ grip tape & reflectors

Rims

650b disc, double-wall alloy, pinned, 32h

Front Hub

Shimano MT400, Centerlock, 15x100mm, 32h

Rear Hub

Shimano MT400-B, Centerlock, 12x148 Boost, 32h

Spokes

DT Swiss Industry

Front Tire

Pathfinder Sport Reflect, 650Bx2.3

Rear Tire

Pathfinder Sport Reflect, 650Bx2.3

Inner Tubes

Schrader, 40mm valve

Saddle

Rivo Sport, steel rails, 155mm

SeatPost

Specialized, 6061 alloy, 2-bolt clamp, 0mm setback, 30.9mm

Seat Binder

Alloy, bolt-type, 34.9mm

Motor

Specialized 2.0E, 50Nm torque, custom tuned motor, 250W nominal

UI/Remote

MasterMind TCD, w/handlebar remote, built-in anti-theft feature, Bluetooth® connectivity, customizable display pages

Battery

Specialized U2-530, alloy casing, state of charge display, 530Wh

Charger

Custom charger, 42V4A w/ Rosenberger plug, 100-240V

Wiring Harness

Custom wire harness

Headlight

Lezyne EBIKE MINI STVZO E65, 210 Lumen, 12V

Taillight

Spanninga Commuter Glow XE, 12V

Chaincase

custom chaincover

Kickstand

Specialized kickstand, 40mm mount

Rack

Specialized rack, MIK HD inteface, built-in pannier mounts, 27kg max load

Fenders

Specialized DRYTECH fenders, 65mm width, aluminum fenderstay
